IKO MLF 14 block C-Lube Linear Way
-
Customizable IKO guide rail
Description
IKO Lube Linear Way ML is a linear motion rolling guide, incorporating the Lube as a components part for lubrication in the slide unit of miniature type Linear Way L series to achieve maintenance free operations for a long period of time.

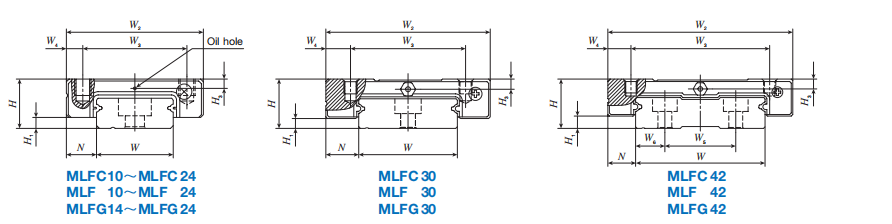

| Model
number |
Mass
(Reference)
g Slide unit |
Track rai per 100mm |
Dim a
H |
Ension of
assembly mm H1 |
N |
W2 |
3 |
4 |
Dim
L1 |
ension m
2 |
of slide
m L3 |
unit
4 |
M1xdepth |
H3 |
W |
||
| IKO MLFC 10 | ☆ | 6.1 | 28 | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | 20.5 | ■ | 13.6 | ■ | M2.5×1.5 | 1.3 | 10 | |
| IKO MLF 10 | ☆ | 7.6 | 24.5 | 17.6 | |||||||||||||
| IKO MLFC 14 | ☆ | 13 | 54 | 9 | 2 | 5.5 | 25 | 19 | 3 | 22.5 | ■ | 13 | ■ | M3 ×3 | 1.7 | 14 | |
| IKO MLF 14 | ☆ | 20 | 31.5 | 10 | 22 | ||||||||||||
| IKO MLFG 14 | ☆ | 29 | 42 | 19 | 32.5 | ||||||||||||
| IKO MLFC 18 | ☆ | 26 | 90 | 12 | 3 | 6 | 30 | 21 | 4.5 | 26.5 | = | 16.6 | = | M3 ×3 | 2.5 | 18 | |
| IKO MLF 18 | ☆ | 42 | 39 | 12 | 28.6 | ||||||||||||
| IKO MLFG 18 | ☆ | 59 | 23 | 3.5 | 50.5 | 24 | 40.4 | ||||||||||
| IKO MLFC 24 | ☆ | 46 | 139 | 14 | 3 | 8 | 40 | 28 | 6 | 30.5 | ■ | 17.7 | ■ | M3 ×3.5 | 3.2 | 24 | |
| IKO MLF 24 | ☆ | 74 | 44 | 15 | 31 | ||||||||||||
| IKO MLFG 24 | ☆ | 108 | 59 | 28 | 46.3 | ||||||||||||
| IKO MLFC 30 | ☆ | 70 | 198 | 15 | 3 | 10 | 50 | 35 | 7.5 | 35.5 | ■ | 20.5 | 40 | M4 ×4.5 | 3.1 | 30 | |
| IKO MLF 30 | ☆ | 111 | 50 | 18 | 34.8 | 54 | |||||||||||
| IKO MLFG 30 | ☆ | 167 | 68.5 | 35 | 53.8 | 73 | |||||||||||
| IKO MLFC 42 | ☆ | 95 | 294 | 16 | 4 | 9 | 60 | 45 | 7.5 | 41.5 | ■ | 25.7 | 46 | M4 ×4.5 | 3.2 | 42 |
As a professional IKO Linear Motion BLOCK exporter and authorized IKO® distributor, WS Bearing stocks thousands kindsof IKO Linear Motion BLOCK for sale，We can IKO guide rail customization export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of IKO products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now
